Adding an S/PDIF output to your Super NES

Adding a digital audio out to the SNES isn't difficult.  (Well, if you're not afraid of a soldering iron.)  The DSP in the SNES outputs a raw 32kHz 16-bit stereo signal.  In order to get this signal into a consumer digital receiver it needs to be reformatted to the S/PDIF standard.

To create an S/PDIF out I'm using a digital transmitter made by Cirrus Logic.  In particular the CS8405A-CS (SOIC), which you can get for around 3 USD.  The CS8405A will take a raw data stream and reformat it to the IEC60958 specification.

1. Determining your APU type

Before you go any further, you need to find out what kind of APU you have.

I'm assuming you already have a 4.5mm Nintendo screwdriver bit, otherwise you're going to have some difficulty getting into your SNES.  Remove the six screws from the bottom, then take the top of the deck off.  If you live in North America, you'll likely be presented with one of the two images:

Older APU module

Newer onboard APU

Look in the upper right corner.  If you see a silver box that reads SHVC-SOUND, then you have one of the first SNES decks.

If you see two chips under the heatsink, then you have a revised SNES.

If you see only one chip under the heatsink, then you have the last revision of the APU.  These units are rarely found in North America, but seem to be popular in Europe.

2. Taking everything apart

2.1 Removing the APU module

If you have the old style SNES, you'll need to remove the APU module in order to get to the DSP.  Do this by removing the two screws in the opposite corners of the module, then pulling the module straight up to disconnect it from the main board.

Next you'll need to take the lid off the underside of the module (the side with the 24-pin connector).  Slide a small standard screwdriver under the lip on one of the sides.  Carefully push the lip off the module.  Do this on each side until the lid comes off.

2.2 Getting the heatsink off

If you have the newer style SNES, you're going to need to get the heatsink off in order to get to the DSP.  If you have the older style with the APU module, removing the heatsink isn't necessary, but it could make adding the output connector easier.

The heatsink is held on by three or four screws on the underside of the mainboard.  So to get it off you'll need to take everything out.

There are seven or nine screws holding the mainboard in place (four silver, three or five gold).  You'll need to remove the power switch to get one of the gold screws out.

Before removing the mainboard from the SNES case, remove the screw holding the voltage regulator to the heatsink.  Flip the board over and remove the screws holding the heatsink on.

2.3 Toss the RF module

When was the last time you used the RF adaptor?  If your home theater system is sophisticated enough that you need an S/PDIF out, then you probably won't be using the RF adaptor with your TV.  I mention this because the RF out is a good place to put your S/PDIF connector.  This way you don't need to drill any new holes in your case.

The shielded RF box thingy is held on by three screws, one on the top and two on the bottom.  Once you take the screws out you'll need to use a soldering iron to disconnect the four pins from the main board.

3. Wiring it up

3.1 Mating the two chips

Rather than draw up a schematic, I've made a table of the pins you need to connect.  The S-DSP column contains the pins you need to connect to if you have a two chip APU, and the S-APU column contains the pins you need to connect to if you have a single chip APU.

33 3 +5VDC 1    COPY/C [CS bit 2] Copyright = 1 (allow copying)
2 VL2+
3 EMPH [CS bits 3-5] Emphasis = 0 (no emphasis)
4 SFMT0 Data input is 16-bits right justified
5 SFMT1 " "
6 VD+
11 TCBLD TCBL is output
20 VL3+
23 VL+
24 H/S Select hardware mode for controlling channel-status (CS) bit
27 VL4+
52 95 GND1 7 DGND4
10 APMS Set data input to slave mode (input is controlled by ISCLK)
16 CEN Select hardware mode A for setting channel status
17 V [Validity bit] Sub-frame contains valid sample data
18 U [User bit] Always 0
19 AUDIO2 [CS bit 1] Non-Audio = 0 (block contains audio data)
28 ORIG [CS bits 0 & 15] Pro = 0 (consumer format), L (Category Code MSB) = 0 (original recording)
47 16 RST 9 RST Reset
43 94 32kHz 12 ILRCK Left/Right sample clock
42 92 1.536MHz 13 ISCLK Sample bit clock
44 93 DATA 14 SDIN Sample data input
78 52  8.192MHz    21 OMCK Master clock
Not connected 15 TCBL
25 TXN
Output 26 TXP S/PDIF output

1 Instead of grounding to the DSP, I soldered pin 28 of the CS8405A to the mainboard and tied all grounds there.  This doubled as a way to anchor the chip.

2 The documentation for the CS8405A would indicate that this pin needs to be set high, but this appears to be incorrect.

3.2 Half a bubble is close enough

Using the clock signals from the DSP results in synchronous operation in the CS8405A, but the output from the DSP isn't exactly 32kHz.

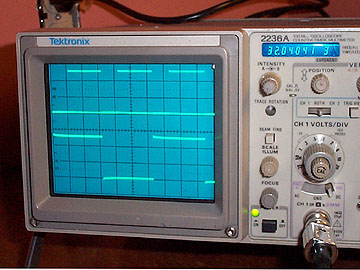

As you can see here, my SNES is outputting samples at about 32040Hz.  (Though you can't see the detail in this picture, the upper trace is of the 16-bit samples and the lower trace is the sample clock.)  This shouldn't be a problem unless you're trying to sync S/PDIF devices or your input device insists on using its own clock.

The CS8405A allows for asynchronous operation.  So, if necessary, you can supply your own master clock (OMCK) by using a more accurate crystal to ensure 32kHz output.  However, doing so will result in samples being dropped or repeated.

3.3 Connecting the output

You can decide on the output connector you want to use.  If you're going to use a Toslink (optical) connector, the TXP pin can be used to directly drive the output circuit.

If you want to use a coaxial (RCA) output, you'll need to throw in a couple of resistors to drop the voltage down to the consumer grade 0.5 volts.

4. Put it back together

Here's the final product.  I don't have a very good digital camera, or I'd have put up better pictures.

Hope you remember where all those screws went. :)
